To fit two existing drill holes, I designed a toilet-roll holder. By adjusting the value of the variable a, the spacing of the holes can easily be increased.
The rounding of the vertical cylinder is achieved in lines 40–41 by adding a truncated cone on top.
// hole spacing in the wall
a = 25.46;
// diameter of the wall disc
b = a*2;
// height of the wall disc
c= 8;
// diameter of the wall-mounting hole
d = 3;
// length of the lower arm
e = 81.28;
// diameter of the lower arm
f = 18;
// length of the upper arm
g = 120;
// diameter of the upper arm
h = 16;
// offset of the upper arm from 0
i = 81.28;
$fn=100;
Bodenplatte();
translate([0,0,c])
cylinder(d=f,h=e);
translate([0,0,i])
rotate([0,90,0])
union() {
cylinder(d=h, h = g-1);
translate([0,0,g-1])
cylinder(d1=h, d2=h-2, h = 1);
}
module Bodenplatte() {
difference() {
cylinder(d=b, h =c);
translate([0,a/2,0])
Loch();
translate([0,-a/2,0])
Loch();
}
}
module Loch() {
cylinder(d=d, h =c-1);
translate([0,0,c-1])
cylinder(d1=d, d2=d+2, h =1);
}

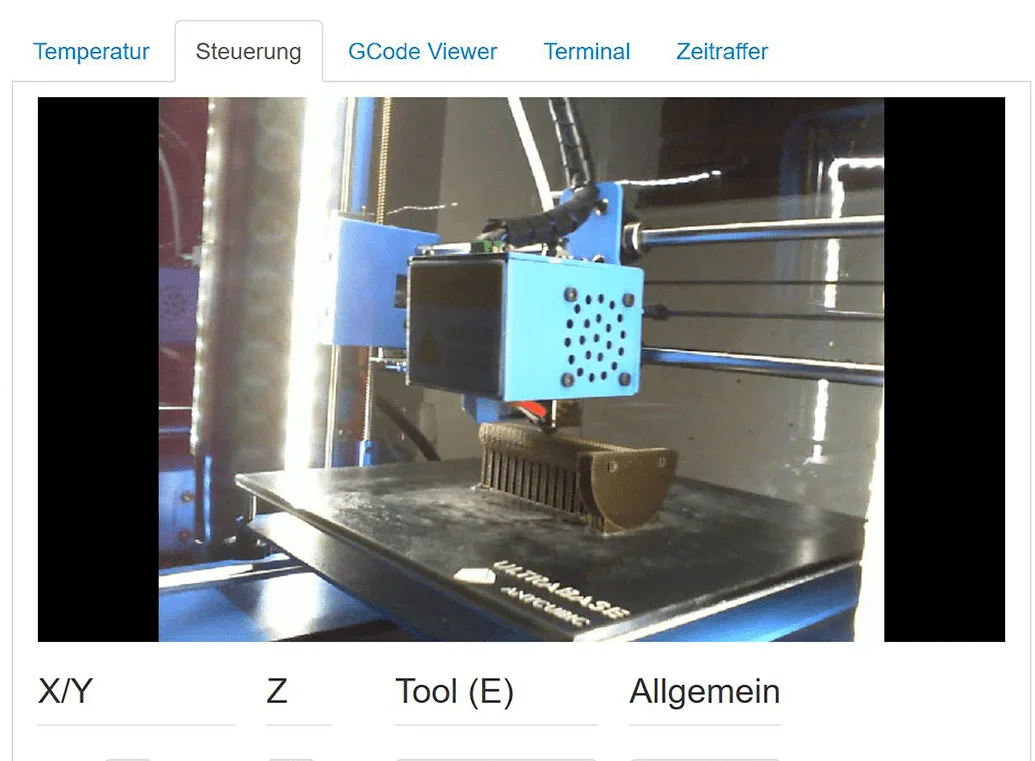

And this is how the printed result looks:
