A dear friend's Siemens vacuum cleaner had a broken wheel. His frustration: the wheel wasn't available on its own — only as a complete assembly, and that cost more than a new vacuum. So he sent me the old, broken wheel. I measured every step with a digital caliper, rebuilt it in OpenSCAD and printed it — and it's been in service at his place for years.
This is exactly where 3D printing pays off: rebuild a small part and save a whole appliance. Hardly anyone needs this exact wheel — what carries over is the approach.
Measured, then rebuilt from cylinders

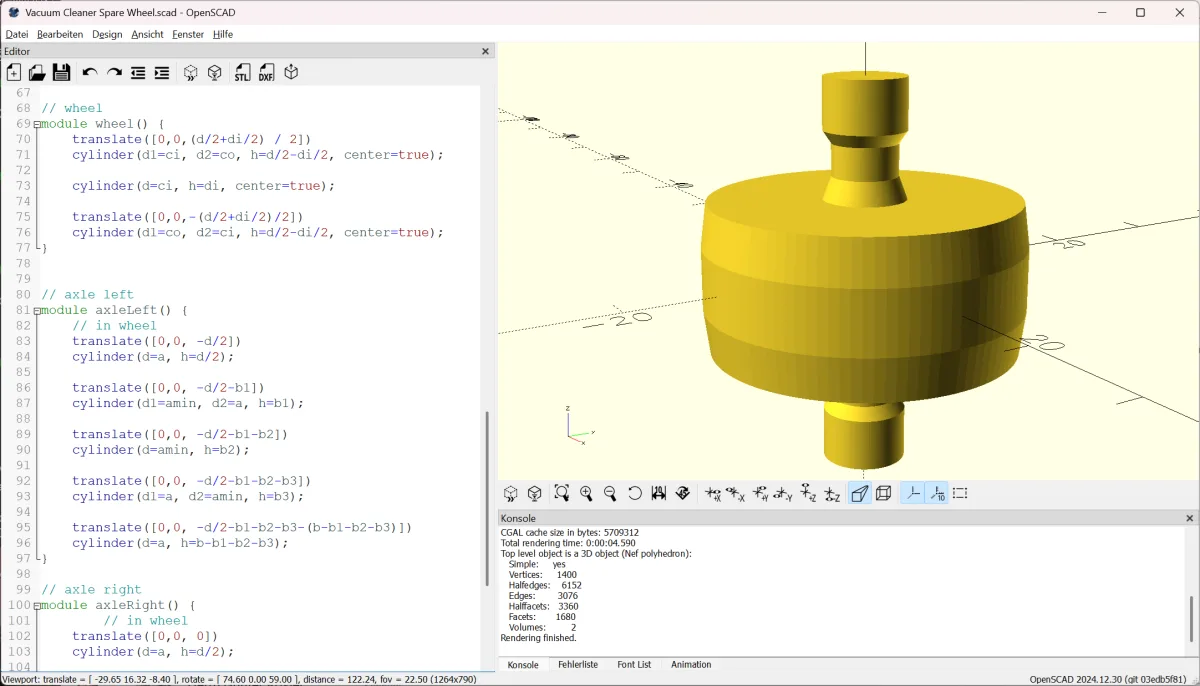

With the caliper, every diameter and width was taken off and written as a named variable at the top of the file — so the model is exact, and a mis-measurement costs only one corrected number. The wheel is a stack of three cylinders (cone–middle–cone); because the middle (ci) is a touch fatter than the outside (co), it gets a gently crowned running surface. The axle stubs are stepped cylinders whose narrow spot (amin/emin) forms the retention groove for the clips in the housing — exact to the millimetre, or the wheel won't hold. (The commented-out rotate([90,0,0]) at the top tips the wheel into a different print position if needed.)
// vacuum cleaner / spare wheel
// --- axle left
// diameter (axle left)
a = 6.6;
// min. diameter (axle left)
amin = 5.26;
// length (axle left)
b = 9.5;
// length till min diameter (axle left)
b1=1.82;
// length with min diameter (axle left)
b2=2.56;
// length till max diameter (axle left)
b3=1;
// --- wheel
// diameter (wheel) middle
ci = 25.63;
// diameter (wheel) outside
co = 24.7;
// width (wheel)
d = 12;
// part of width (wheel) with middle diameter
di = 5;
// --- axle right
// diameter (axle right)
e = 6.6;
// min. diameter (axle right)
emin = 5.26;
// length (axle right)
f = 9.5;
// length till min diameter (axle right)
f1=1.82;
// length with min diameter (axle right)
f2=2.56;
// length till max diameter (axle right)
f3=1;
// quality
$fn=100;
//rotate([90,0,0]) {
wheel();
axleLeft();
axleRight();
//}
// wheel
module wheel() {
translate([0,0,(d/2+di/2) / 2])
cylinder(d1=ci, d2=co, h=d/2-di/2, center=true);
cylinder(d=ci, h=di, center=true);
translate([0,0,-(d/2+di/2)/2])
cylinder(d1=co, d2=ci, h=d/2-di/2, center=true);
}
// axle left
module axleLeft() {
// in wheel
translate([0,0, -d/2])
cylinder(d=a, h=d/2);
translate([0,0, -d/2-b1])
cylinder(d1=amin, d2=a, h=b1);
translate([0,0, -d/2-b1-b2])
cylinder(d=amin, h=b2);
translate([0,0, -d/2-b1-b2-b3])
cylinder(d1=a, d2=amin, h=b3);
translate([0,0, -d/2-b1-b2-b3-(b-b1-b2-b3)])
cylinder(d=a, h=b-b1-b2-b3);
}
// axle right
module axleRight() {
// in wheel
translate([0,0, 0])
cylinder(d=a, h=d/2);
translate([0,0, d/2])
cylinder(d1=a, d2=emin, h=f1);
translate([0,0, d/2+f1])
cylinder(d=emin, h=f2);
translate([0,0, d/2+f1+f2])
cylinder(d1=emin, d2=a, h=f3);
translate([0,0, d/2+f1+f2+f3])
cylinder(d=a, h=f-f1-f2-f3);
}
